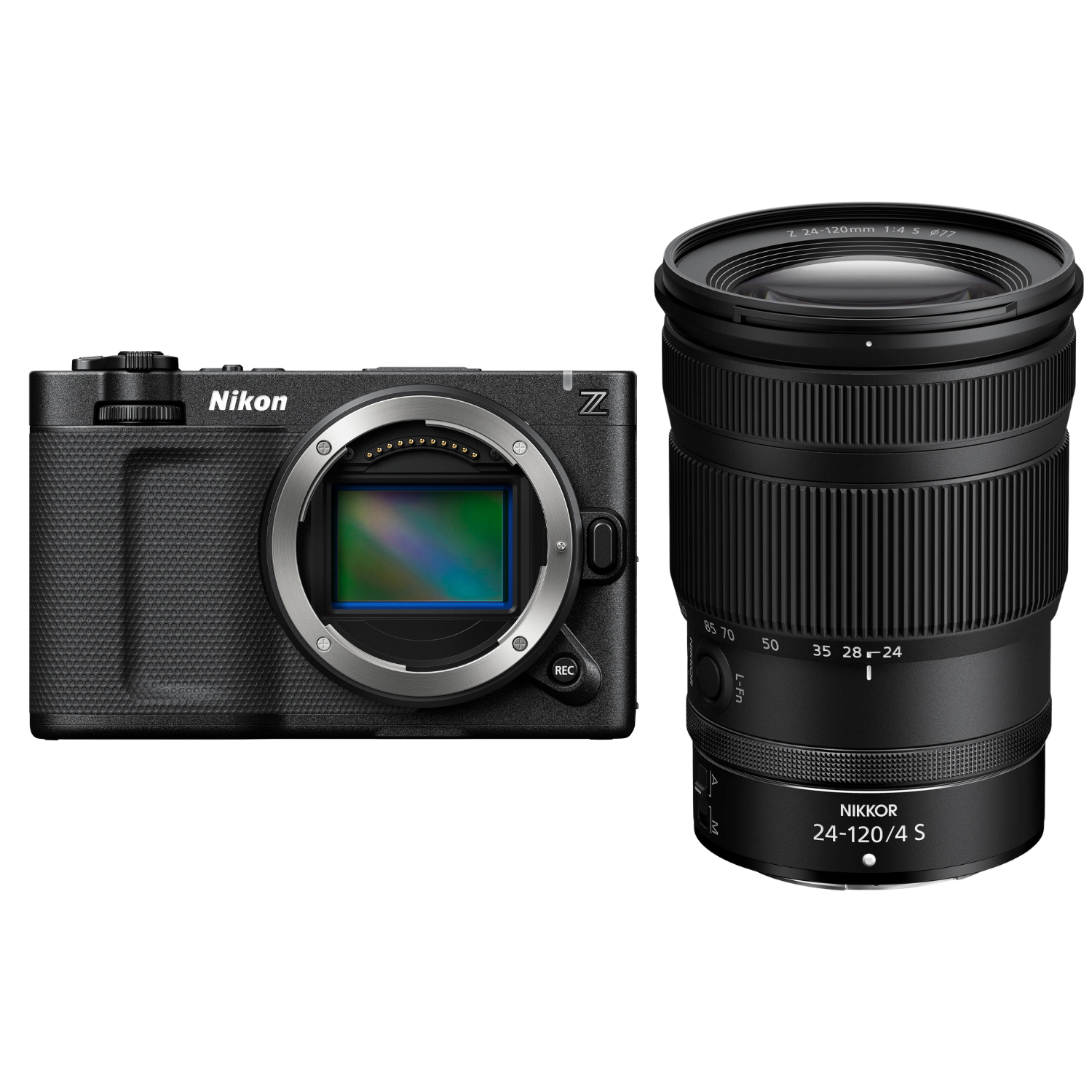

By combining RED color science and Nikon engineering, the Nikon ZR 6K Cinema Camera is a first-of-its-kind powerhouse designed to capture stunning cinematic images in one compact body. This tiny Z-mount cinema camera allows you to use a variety of lenses, and internal stabilization provides a smooth, steady image with 15+ stops of dynamic range. Features include 32-bit float audio, advanced autofocus, dual-base ISO, and up to 6K60 video capture in REDCODE, N-RAW, or ProRes RAW.
The partnership of Nikon and RED provides a wide range of compatibility with production workflows, offering REDCODE RAW R3D NE recording format along with Nikon's N-RAW, ProRes RAW HQ/422 HQ, and the high-quality compressed H.264 and H.265 codecs. REDCODE RAW (R3D NE) unlocks the same color space (REDWideGamutRGB) and Log curve (Log3G10) as RED cameras.
The camera captures resolutions up to 6K60, 4K120, and even 1080p240 for high frame rate, slow-motion recording.
The ZR captures high-quality audio using dynamic 32-bit float and 24-bit recording, and it supports standard 48 kHz linear PCM for full video compatibility.
It features built-in configurable mics with five directional patterns (front/narrow, front, rear, omnidirectional, and binaural). There's also a line input that provides the ability to record with an external microphone, and the camera's digital accessory shoe that can utilize mics such as the ME-D10 shotgun mic. A headphone jack allows you to monitor the audio.
The camera records to a CFexpress Type B card slot that is accessed through the battery door to keep the camera compact and mobile, while a microSD card slot is available for proxy recording. There is also a micro-HDMI output that allows you to output to a display or recording device.
Nikon's advanced autofocus feature is powered by deep learning, providing up to 9-subject detection autofocus with automatic tracking of people, animals, and vehicles.
The Nikon Z mount is a wide, shallow full-frame mirrorless lens mount, which means it's also extremely adaptable, capable of supporting countless NIKKOR and third-party lenses.
There's an extended ecosystem of accessories for the ZR, such as camera cages, microphones, handheld accessories, and rigs, from Nikon and third-party brands such as SmallRig.
The built-in 4" variable-angle touchscreen display features a DCI-P3 color gamut, 1000 cd/m² brightness, and a 3.07 million dot resolution for viewing your controls and footage with ease.
The display can automatically flip when you change from horizontal to vertical mode.
The camera provides the ability for the operator to load up to 10 LUTs into the camera for real-time preview on its display.
The standard Z lens mount allows you to utilize the entire line of NIKKOR Z lenses and a wide range of third-party lenses and lens mount adapters.
The ZR provides integrated image stabilization with any prime or zoom lens at up to 7.5 stops to provide smooth, steady image capture.
The ZR provides extended ISO sensitivity to the base ISO with its dual-base ISO, providing 800/6400 for both Log3G10 and N-Log profiles.
You can also set the shutter angle to one of 15 steps between 5.6 and 360° for powerful exposure and blur control.
The camera's companion app allows you to streamline your workflow by connecting the camera to your phone and utilizing the optional Frame.io cloud service, making asset control, post production, and live streaming easy.
The ZR allows you to get started quickly with an accessible stills/video switch and multiple customizable Fn buttons.
The interface features a shortcut menu for easy access to key filmmaking settings such as grids, zebra, waveform, touch autofocus, focus peaking, and numerous other imaging tools.
The camera is powered via one EN-EL15c battery in its battery slot, or it can be powered via USB-C using an external power source such as an optional power supply or power bank.
This tiny camera is the size of a small mirrorless camera but packs in cinema camera technology.
Take the camera into the field, mount it onto a vehicle, stabilize it on a gimbal, or perform steadycam, drone, or POV shots - it's lightweight enough to perform just about anywhere.
Nikon NIKKOR Z 24-120mm f/4 S Overview
A truly versatile everyday lens, the NIKKOR Z 24-120mm f/4 S, from Nikon, is a wide-angle to short-telephoto zoom covering an extremely useful range of focal lengths to benefit a variety of applications from landscape to portraiture. The constant f/4 maximum aperture offers consistent performance throughout the zoom range and the lens features an advanced optical design for high sharpness and clarity. As a go-to lens for a majority of needs, this lens also sports a relatively compact and lightweight design.
- Featuring a combination of three ED elements, one aspherical ED element, and three aspherical elements, both chromatic and spherical aberrations are effectively eliminated throughout the zoom range for notable sharpness and clarity.
- ARNEO and Nano Crystal Coats are used to prevent ghosting, reflections, and flare in order to realize improved contrast and clarity when working in strong lighting and backlit conditions. The Nano Crystal Coat controls incidental light from a diagonal direction while the ARNEO Coat controls incidental light from a vertical direction.
- Multi-focus system incorporates two separate AF drive units, which are synchronized, to deliver especially fast and accurate focusing throughout the zoom range. This system uses stepping motors, which offer impressively smooth and quiet autofocus performance that is well-suited to both stills and video applications.
- Full-time manual focus override is also possible and an internal focusing design is used, where only the internal lens groups are moved during focusing, to maintain the overall length of the lens during use and to promote faster focusing speeds.
- Dedicated manual focus ring at the rear of the lens for tactile and precise control over the focus position.
- Minimum focusing distance of 1.1', along with a maximum magnification of 0.39x, benefits working with close-up subjects.
- Programmable Control Ring can be used to control aperture, ISO, or exposure compensation.
- Assignable L.Fn button works in conjunction with camera-based Fn buttons to provide seamless points for quickly changing exposure settings and other functions.
- Dust- and moisture-resistant lens barrel, along with a front fluorine coating, benefits the lens' use in inclement conditions.
