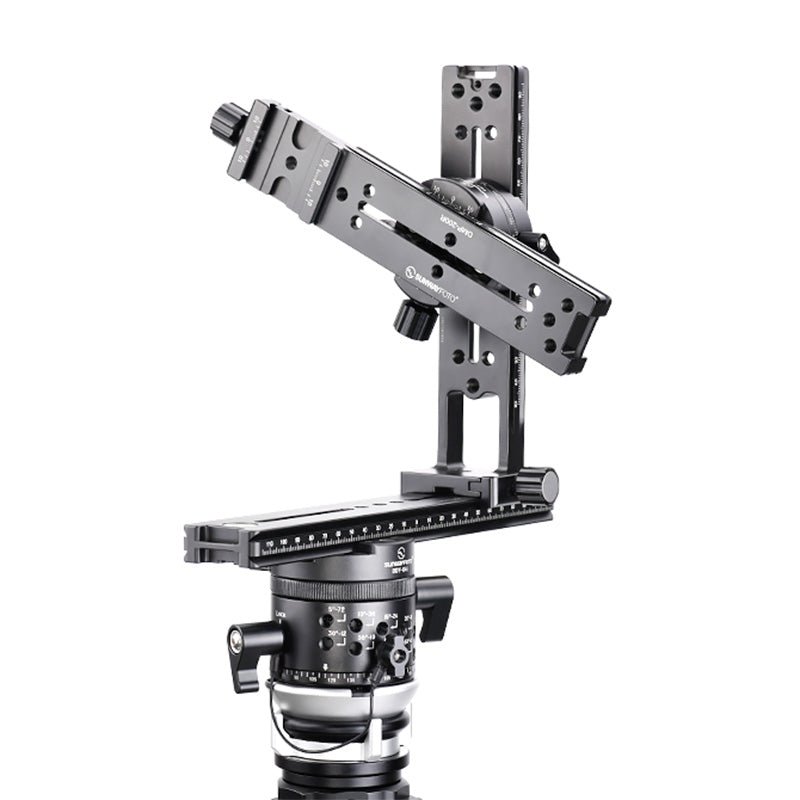

The Pano-3 Panoramic Head from Sunwayfoto is made up of eight parts that combine to make a unique and versatile pano head. Built upon a leveling base, the head includes an indexing rotator that allows you to pan at precise degree increments, a discal clamp to hold the 240mm long horizontal rail. This rail has dovetailed on the bottom and the top so that it can accept the DMC-200 vertical rail. On the vertical rail is another discal clamp with a panning clamp with a 200mm long rail attached to it. All together, these parts work together to allow for taking precise panoramic images.

Sunwayfoto DYH-66i Leveling Base
The Sunwayfoto DYH-66i Leveling Base features a 2.59" diameter platform that supports medium format 6x6 and 6x7 still cameras. The platform also features an offset bubble level to keep your horizons straight.

The DYH-66i has a 1/4"-20 screw at the top and 3/8"-16 mounting hole at the bottom, for direct attachment to many tripods. Completely constructed of metal (including the control lever), the leveling base weighs just 0.289Kg

• Top stud 1/4"-20 and socket mount at bottom 3/8"-16
• Anodized for a scratch-resistant finish
• Removable offset spirit level

Sunwayfoto DDP-64M Indexing Rotator
The Sunwayfoto DDP-64M Indexing Rotator is a rotating head that allows you to pan at precise degree increments. This enables you to capture a series of photos – at stop intervals that range from 5° to 90° – that you'll later stitch into a panoramic masterpiece (possibly involving high-dynamic-range capture as well).

Remove and insert the attached key to easily change the detent (stop) interval. The DDP-64M features independent locks for the top platform and for the pan base. You can also use this indexing rotator as a traditional panning base. With a 10Kg load capacity, the DDP-64M supports most camera/lens combinations.

• There are 10 options for detent (stop) configuration: degree increments of 5 (72 stops), 10 (36 stops), 15 (24 stops), 20 (18 stops), 24 (15 stops), 30 (12 stops), 36 (10 stops), 45 (8 stops), 60 (6 stops), or 90 (4 stops)
• All-metal construction, anodized to a scratch-resistant black finish
• The control lever is also metal, with no plastic or rubber
• Lubricated bearings for smooth rotation
• Laser-engraved index marks

Sunwayfoto Discal Clamp 64mm
The Discal Clamp 64mm from Sunwayfoto is a Swiss-Arca-compatible integral screw-knob clamp with an anodized black finish. It has a captive knob, safety-stop grooves, and a hollowed-out design that reduces the weight of the clamp. You can use an M6 screw to mount it to an AS-style ball head, and it will accept any standard Arca-Swiss quick-release plate. This Discal Clamp also has an integrated bubble level.

• CNC-machined integral screw-knob clamp
• Arca-Swiss-compatible
• Anodized black finish
• Captive knob
• Integrated bubble level
• Safety stop grooves
• Lightweight hollow design

Sunwayfoto DPG-2416 Multi-Purpose Rail
The Sunwayfoto DPG-2416 Multi-Purpose Rail is an improved multi-purpose rail with a high-contrast bubble level, an increased length of 9.44", and rail laser reference scale with 1mm increments on both sides. It's compatible with a wide range of 135/120 film cameras, as well as digital SLR cameras, and provides a substantial back/front adjustment, which saves you from having to move the tripod for relatively small shifts in placement.

• Arca-Swiss-compatible
• Places lens axis as nodal point
• Allows front/back adjustment
• Bubble level
• High-quality anodized aluminum alloy
• The strap mounting hole is available to fasten a wrist strap to the rail
• A movable stop bar helps you to accurately position your camera and re-create the same setup each time
• Easily recognized laser-engraved scale on both sides of the rail helps to adjust the nodal point conveniently and accurately

Sunwayfoto DMP-200 Multi-Purpose Rail Nodal Slide
The Sunwayfoto DMP-200 Rail Nodal Slide is an Arca-type compatible quick-release rail that is used to accurately find the nodal point of your lens when used in panoramic photography. In close-up photography, the rail allows for easy front-to-back adjustment. It has a laser-engraved scale on both sides of the rail to help accurately adjust the rail and find the nodal point. A strap slot allows for fastening a camera strap for increased comfort and security, and safety stop screws prevent accidental release from the clamp. The rail's hard-anodized finish helps protect it from bumps and scratches.

Sunwayfoto DDH-03 Large Panning Clamp with Arca-Swiss Dovetail
The DDH-03 Large Panning Clamp from Sunwayfoto allows you to properly stitch a set of panoramic images and produce a super-sized panorama or VR movie, with a completely level horizon line. It has an adjustable, Arca-Swiss compatible clamp and removable bottom dovetail. It is precision-machined from solid aircraft-grade anodized aluminum alloy, with a high-contrast bubble level built right in. The entire clamp is made of solid metal, including everything from the base to the knobs, giving it high locking strength and durability. The scale for horizontal rotation has 0-360° laser-engraved index marks in increments of 2.5°, and the aligned scale on the quick-release plate accurately controls the nodal point - for more accurate and efficient panoramas at different focal lengths.

Sunwayfoto Discal Clamp 58mm
The Discal Clamp 58mm from Sunwayfoto is a Swiss-Arca-compatible integral screw-knob clamp with an anodized black finish. It has a captive knob, safety-stop grooves, and a hollowed-out design that reduces the weight of the clamp. You can use an M6 screw to mount it to an AS-style ball head, and it will accept any standard Arca-Swiss quick-release plate. This Discal Clamp also has an integrated bubble level.

• CNC-machined integral screw-knob clamp
• Arca-Swiss-compatible
• Anodized black finish
• Captive knob
• Integrated bubble level
• Safety stop grooves
• Lightweight hollow design

Sunwayfoto DMC-200 Vertical Rail With "On-End" Clamp
The Sunwayfoto DMC-200 Vertical Rail With "On-End" Clamp is compatible with all Arca-Swiss-style standard quick-release plates. It has an "on-end" integral clamp that slides onto a Multi-Purpose Rail (not included) to create a quick-mount component for vertically mounting your camera. A strong rail cross-section provides good stability.

• Precision machined from solid aircraft-grade aluminum
• Hard-anodized finish, durable and resists scratches
• Easily recognized laser-engraved scale
