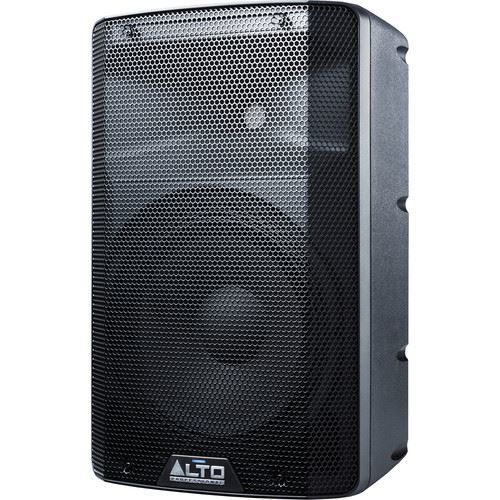

The Alto Professional TX210 is a 10" 2-way 300W powered loudspeaker offering full coverage and high output for bands, DJs, and audio engineers in concert venues, clubs, and live stage applications. It features 300 watts of Class-D amplification driving the 10" woofer and 1" high-frequency compression driver for a frequency response of 75 Hz to 20 kHz. The lightweight injection-molded polypropylene enclosure provides a socket for mounting on a standard speaker pole, and is angled to accommodate wedge configurations. A top-panel carry handle enables easy transport.
The XLR 3-pin input accepts balanced sources such as a mixer output and includes a volume control. An XLR link output allows simple daisy-chaining to additional powered loudspeakers. LEDs are present for power and clip indication. The TX210 is designed and tuned in the USA, and includes an IEC power cable.
| PA Speaker | |
|---|---|
| Configuration | Active 2-Way |
| Total Power Capacity | 300 W Peak 150 W RMS |
| Amplifier Power Rating | LF: 200 W Peak 100 W RMS HF: 100 W Peak 50 W RMS |
| Amplifier Class | Class-D |
| Drivers | |
|---|---|
| HF Driver | 1 x 1" / 25.4 mm Titanium Compression Driver |
| LF Driver | 1 x 10" / 25.4 cm Woofer |
| LF Voice Coil | 1.5" / 38.1 mm |
| Performance | |
|---|---|
| Frequency Response | 75 Hz to 20 kHz -3 dB |
| Maximum SPL | 116 dB |
| Coverage Angle | 90° H x 60° V (Horn) |
| Protections | Thermal |
| Connectivity | |
|---|---|
| Audio I/O | 1 x XLR 3-Pin Female Balanced Input 1 x XLR 3-Pin Male Balanced Output |
| Signal Processing | |
|---|---|
| Crossover | 2.5 kHz |
| Power | |
|---|---|
| AC Input Power | 100 VAC, 50 / 60 Hz (T 1.6 A L 250 V) 110 to 120 VAC, 50 / 60 Hz (T 1.6 A L 250 V) 220 to 240 VAC, 50 / 60 Hz (T 800 mA L 250 V) |
| Power Consumption | 150 W |
| Physical | |
|---|---|
| Mounting | 1 x Pole Socket |
| Construction Material | Polypropylene |
| Dimensions | 18.2 x 11.3 x 10.9" / 462.0 x 287.0 x 277.0 mm |
| Weight | 16.7 lb / 7.6 kg |
| Packaging Info | |
|---|---|
| Package Weight | 8 kgs |
| Box Dimensions (LxWxH) | 20.5 x 14.0 x 13.5" |
