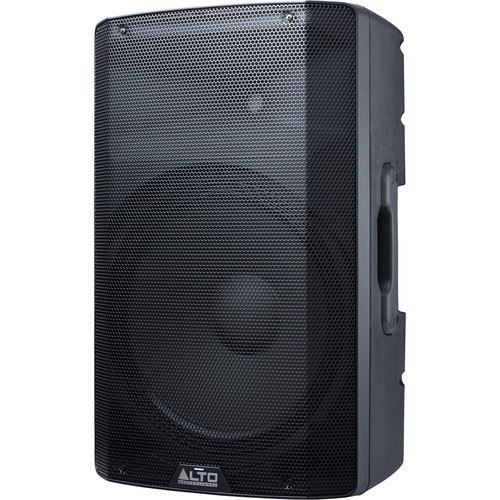

The Alto Professional TX215 is a 15" 2-way 600W powered loudspeaker offering full coverage and high output for bands, DJs, and audio engineers in concert venues, clubs, and live stage applications. It features 600 watts of Class-D amplification driving the 15" woofer and 1" high-frequency compression driver for a frequency response of 65 Hz to 20 kHz. The lightweight injection-molded polypropylene enclosure provides a socket for mounting on a standard speaker pole, and is angled to accommodate wedge configurations. Top- and side-panel carry handles enable easy transport and positioning.
The XLR-1/4" input accepts sources such as a mixer output or dynamic microphone. Level and tone adjustments are possible via the volume knob and contour switch. An XLR link output allows simple daisy-chaining to additional powered loudspeakers. LEDs are present for power and clip indication. The TX215 is designed and tuned in the USA, and includes an IEC power cable.
| PA Speaker | |
|---|---|
| Configuration | Active 2-Way |
| Total Power Capacity | 600 W Peak 300 W RMS |
| Amplifier Power Rating | LF: 400 W Peak 200 W RMS HF: 200 W Peak 100 W RMS |
| Amplifier Class | Class-D |
| Drivers | |
|---|---|
| HF Driver | 1 x 1" / 25.4 mm Compression Driver |
| LF Driver | 1 x 15" / 38.1 cm Woofer |
| LF Voice Coil | 2" / 50.8 mm |
| Magnet | HF: Neodymium |
| Performance | |
|---|---|
| Frequency Response | 65 Hz to 20 kHz -3 dB |
| Maximum SPL | 119 dB |
| Coverage Angle | 90° H x 60° V (Horn) |
| Protections | Thermal |
| Connectivity | |
|---|---|
| Audio I/O | 1 x Combo XLR-1/4" Input 1 x XLR 3-Pin Male Balanced Output |
| Signal Processing | |
|---|---|
| Crossover | 2.2 kHz |
| Power | |
|---|---|
| AC Input Power | 100 to 120 VAC, 50 / 60 Hz (T 4 A L 250 V) 220 to 240 VAC, 50 / 60 Hz (T 2 A L 250 V) |
| Power Consumption | 260 W |
| Physical | |
|---|---|
| Mounting | 1 x Pole Socket |
| Construction Material | Polypropylene |
| Dimensions | 24.7 x 15.2 x 14.6" / 627.0 x 386.0 x 371.0 mm |
| Weight | 32.4 lb / 14.7 kg |
| Packaging Info | |
|---|---|
| Package Weight | 15 kgs |
| Box Dimensions (LxWxH) | 28.0 x 18.15 x 18.1" |
