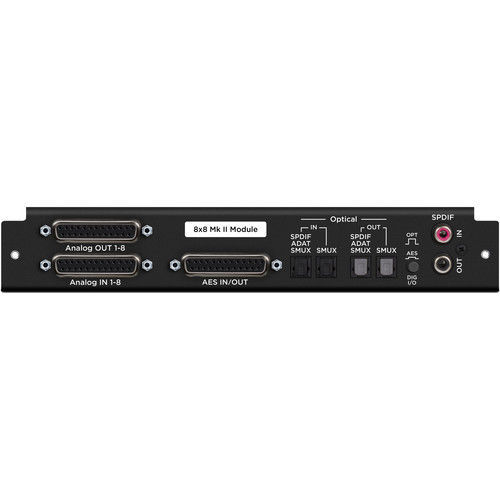

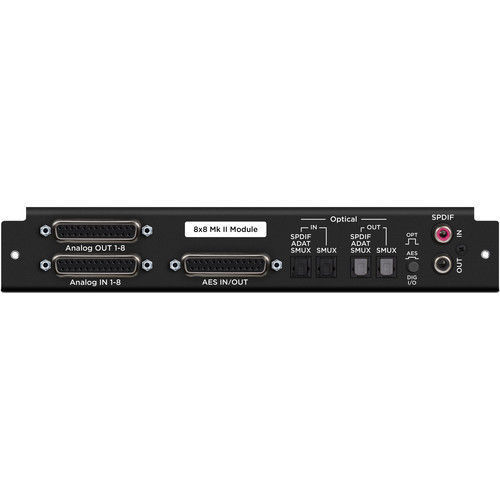

The 8x8 Mk II Module from Apogee is a 16-channel module for the Symphony I/O that allows for any combination of 8 x 8 analog input and output, and 8 x 8 AES/EBU or optical digital input and output. The module occupies one of the two slots available on the chassis. The A/D circuit has been refined to offer a streamlined circuit design, resulting in the most transparent signal path to the A/D stage possible. A dual-sum A/D stage is utilized where two conversion stages are summed for each analog channel, offering the lowest distortion and the greatest dynamic range of any A/D converter Apogee has ever designed.
The D/A section has been optimized with a more powerful and robust output driver that is capable of driving virtually any input without a decrease in performance, regardless of the load presented by the connected gear. The analog and AES inputs and outputs are offered on DB25 connectors and require optional breakout cables, available in various configurations to suit individual requirements.
- 8 x 8 channels of analog input/output with 8 x 8 channels of AES/EBU or optical digital input/output, available simultaneously up to a total of 16 channels
- Optical digital supports ADAT, SMUX, and S/PDIF
- S/PDIF input and output up to 192 kHz on RCA coaxial that replaces two input channels and mirrors two output channels
- Ultra-low latency AD and DA conversion
- Rear-panel digital I/O hardware switch selects AES or optical digital I/O format
