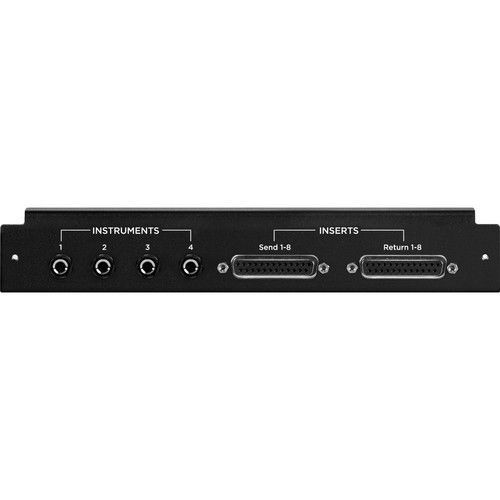

The A8MP from Apogee is a module for the company's Symphony system that enhances the system's analog input by adding 8 microphone preamps. Additionally, up to 4 instrument inputs can be connected directly to the module and twin D-Sub connectors deliver 8 fully balanced inserts points.
Microphones do not connect directly to the Mic Preamp Module. They must be connected to the analog inputs of an analog I/O Module that has been installed in slot 1 of the Symphony chassis. The microphone preamps are then enabled in the Maestro software. Phantom power can also be enabled individually from the software.
Eight digitally controlled, 85dB microphone preamps
Upgrades functionality of Analog I/O Module by adding microphone preamps to the existing line inputs
Creates a direct connection between the Mic Preamp Module and the Analog I/O Module by inserting a microphone preamp stage before the line inputs
Phantom power individually switchable (via Maestro)
Four Hi-Z 1/4" instrument inputs capable of handling high level instruments
Eight fully balanced insert points on 25-pin D-Sub connectors
