Manfrotto 804 Overview

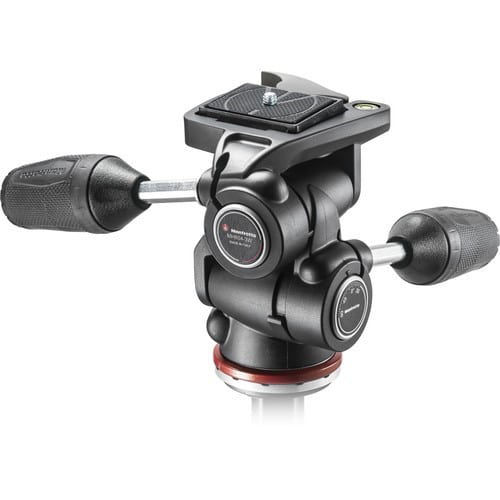

This MH804 3-Way, Pan-and-Tilt Head from Manfrotto has a load capacity of 8.8 lb and can be attached to tripods or other support systems that feature a 3/8"-16 mount. It includes an integrated RC2 quick release cam lock and a 200LT-PL Quick Release Plate. RC2 compatible quick release plates such as the 200LT-PL can be removed from the head by pulling the cam lock's spring-loaded lever, which also allows the plate to be quickly reattached. The cam lock also features a safety catch to prevent the 200LT-PL, or another compatible quick release plate from accidentally disconnecting.

Cameras, sport optics, or camcorders that are compatible with a 1/4"-20 mount can be connected to the quick release plate before securing it to the pan-and-tilt head. The head can be rotated 360°, tilted 90° forwards or 30° backwards, as well as 90° sideways for portrait orientation. Each of these three movements function independently of each other, have dedicated control handles, and can be locked into place. In addition to integrating the ability to individually lock the movements by twisting each corresponding handle's rubberized grip, the telescoping control handles for both tilt functions can also be retracted while the head is not in use for more convenient storage or transport.

To promote fast, repeatable, and accurate device positioning, this MH804 3-Way, Pan-and-Tilt Head also includes dedicated angle scales for each movement that are designed for easy visibility. For heavier loads, built-in counterbalance springs help ensure smooth as well as gradual backwards and forwards tilt movements.
