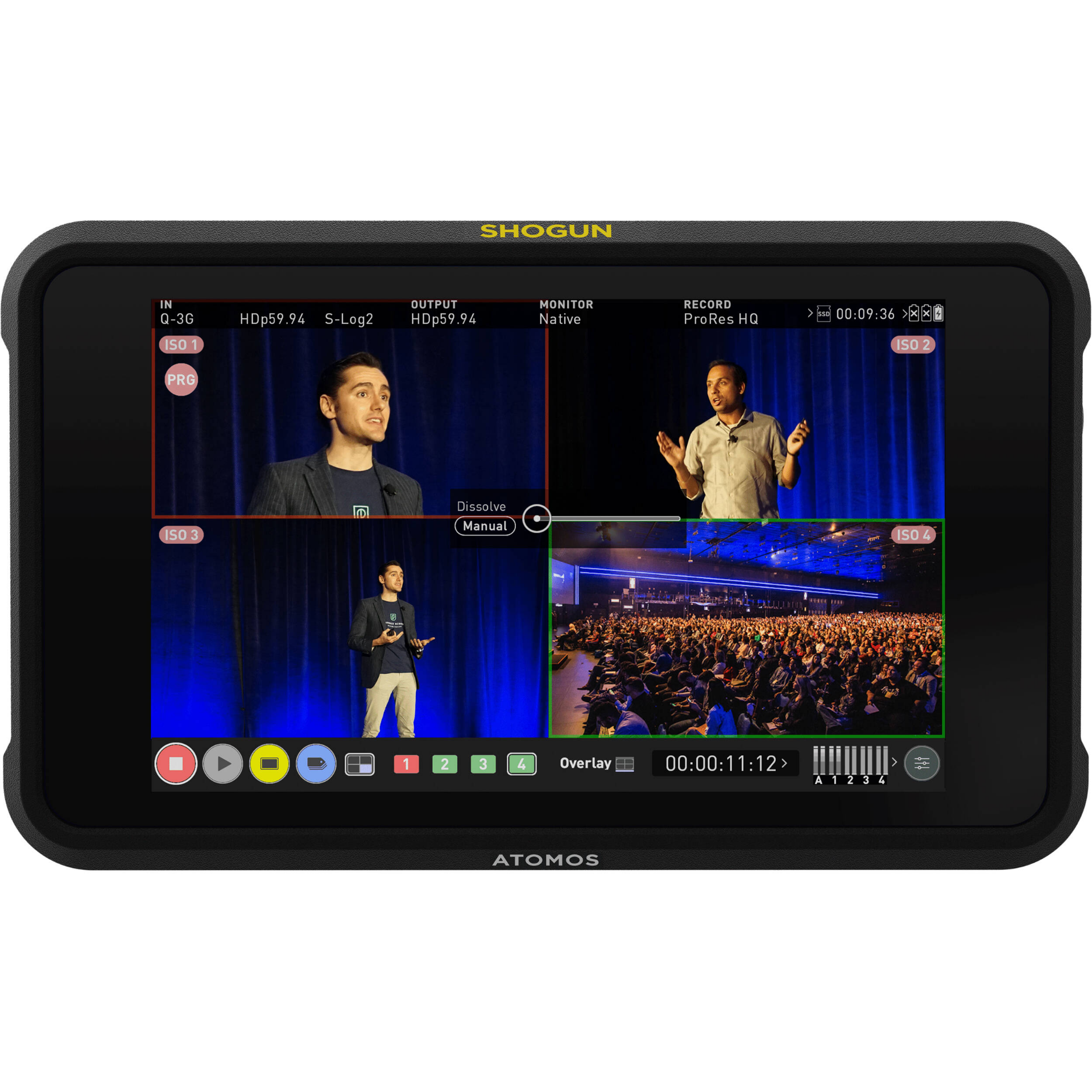

The 7" Shogun HDR Classic Cinema Monitor-Recorder-Switcher, one of the latest workhorses in the Atomos line of Shogun onboard camera video monitor-recorders, provides monitoring, recording, and switching in a single, compact tool. The ultra-bright 3000 cd/m² display can input up to DCI/UHD 4K60 video and features HDMI and SDI input and output, so it's perfect for cinema capture, live events, and broadcast productions.
Ultrabright Screen
- 7.2" large 1920 x 1200 resolution display
- 1,000,000:1 contrast ratio
- 3000 cd/m² brightness
- Play back your recently captured shots on the same pristine screen for reviewing
Multicamera Switching
- Four SDI inputs transform the Shogun Classic into a portable, quad-view live switcher and recorder on your multicamera shoots
- Record a fifth program channel of your switched feed and display the resulting mixed output (via HDMI or SDI) live
- You can even output the switched feed for live streaming
- Switching is completely asynchronous, eliminating the need for expensive locked sources and allowing the use of more affordable cameras
HDR I/O and Color Management
- Deliver content via live HDMI out, in real time, from any HDR camera to a compatible HDR TV or monitor
- Monitor every pixel of SDR or HDR as it's captured and view it in 10-bit HDR
- Add the monitor to a high-end ARRI, RED, or Sony VENICE, and you'll get accurate HDR monitoring and all the tools you need to get your job done
Recording
- Use with your DSLR or mirrorless camera via HDMI to record up to 4K60 Apple ProRes and AVID DNx codecs for easy editing and archival quality
- Record up to four 1080p60 streams simultaneously as separate ISOs while cueing and switching in real time with a simple touch of the screen
Additional Features
- LTC input via BNC
- 2-pin XLR audio input for 2-channel input and output
- Dual L-series battery plates
- 1/4"-20 mounting thread
- Fan and heat sink cooling
- Remote start/stop trigger via 2.5mm LANC jack
- 3.5mm headphone output
- Includes Master Caddy II; supports Master Caddy II and SSDmini
Monitoring Tools
The 7" Shogun Classic features numerous built-in monitoring tools, including:
- Custom 3D LUTs
- False color
- Focus peaking
- HDR exposure
- Pixel magnification (1:1, 2:1)
- RGB parade
- Vectorscope
- Frame guides
- Zebra
- Waveform
- Safe areas
- Markers
- Vertical flip
- Atomos Calibrator with Display Pro HL and Display Plus HL
- Downscaling to HD and crop
- Interlaced and PSF to progressive
- Anamorphic de-squeeze
