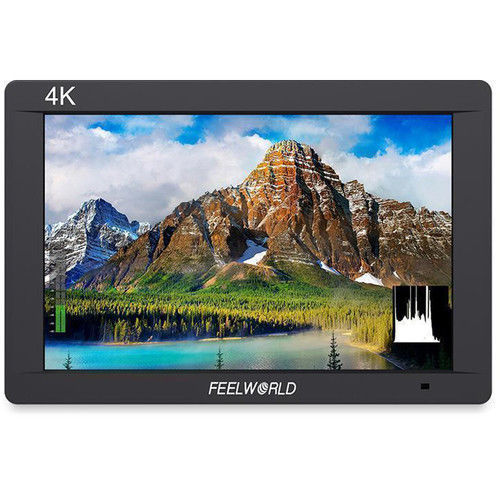

The FW703 3G-SDI 4K HDMI On-Camera Monitor from FeelWorld features a 7" Full HD screen with a resolution of 1920 x 1200 and up to 323 ppi density. This compact monitor includes 3G-SDI and 4K HDMI inputs and outputs. The IPS 160° wide-viewing angle allows the operator to have a clear, easy-to-see image as their position shifts, and features a brightness of 450 cd/m2 with a contrast ratio of 1200:1. The FW703 features professional color calibration, peaking, zoom, anamorphic mode, markers, and image flip. The monitor includes an HDMI to mini HDMI cable, sunshade, shoe mount adapter, and an L-series type battery plate. Software upgrade on this monitor is done via its USB port.
- 3G-SDI and 4K HDMI loop-through output
- Full HD 1920 x 1200 resolution
- 160° wide-viewing angle IPS panel
- Histogram
- Peaking focus assist (red, green, blue)
- False colors
- Zebra exposure (1-100 IRE adjustable)
- Nine-grid (4K input not supported)
- Embedded audio meter
- Camera mode
- 4x, 9x, 16x zoom (4K input not supported)
- Anamorphic mode (1.3x, 2.0x, 2.0x mag)
- Pixel-to-pixel (4K input not supported)
- Center marker
- Safe area (80%, 85%, 90%, 93%, 96%, 2.35:1)
- Ratio marker (4:3, 13:9, 14:9, 15:9, 16:9, 1.85:1, 2.35:1)
- Marker color (red, green, blue, white, black)
- Check field (red, green, blue, mono)
- Image flip (H, V, H/V)
- Image freeze
- Zoom-all (4K input not supported)
- U/D and L/R zoom (4K input not supported)
- Color temperature adjustment
