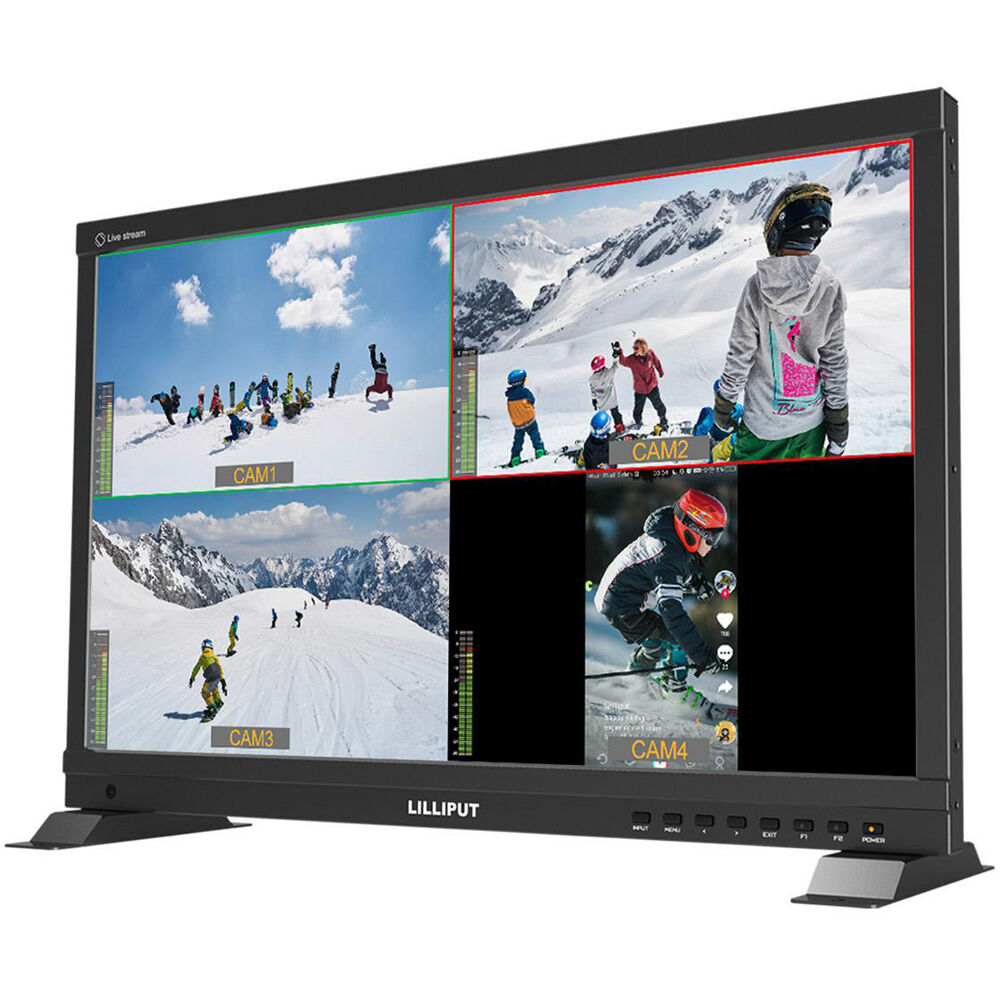

The PVM220S 21.5" 3G-SDI/HDMI Broadcast Monitor from Lilliput features a quad-split display, preview and program output, and both horizontal and vertical display modes suitable for social media content. This 1920 x 1080 resolution monitor provides 3G-SDI, HDMI, and USB Type-C audio input and 3G-SDI and HDMI outputs. It offers 500 cd/m2 brightness, 1500:1 contrast, 2-channel on-screen audio monitoring, and multiple imaging tools for creating an accurate display.
Versatile Video Input and Output
- Dual 3G-SDI inputs, dual 3G-SDI outputs
- Dual HDMI inputs, single HDMI program output
- Single USB Type-C input
Quad-Split Multiview
Input and view up to four 1080p60 signals
USB Vertical Display
USB Type-C input can be displayed vertically for social media-oriented content
Workflow
- Cut between preview and program for live mixing
- Pair with a router and your computer or phone for streaming
Audio
- Selectable audio monitoring enables you to keep an eye on your audio levels
- Supports 2-channel embedded audio
Imaging Tools
Multiple tools for creating an accurate display include:
- Center and safety markers
- Focus peaking
- Histogram, zebra, and false color
- Color temperature selection
- Check field and freeze frame
Function Buttons
Two front-panel buttons can be assigned to your most-used functions
Versatile Mounting
- Wall mountable using its 75 x 100mm VESA pattern
- Tabletop support using the included feet
