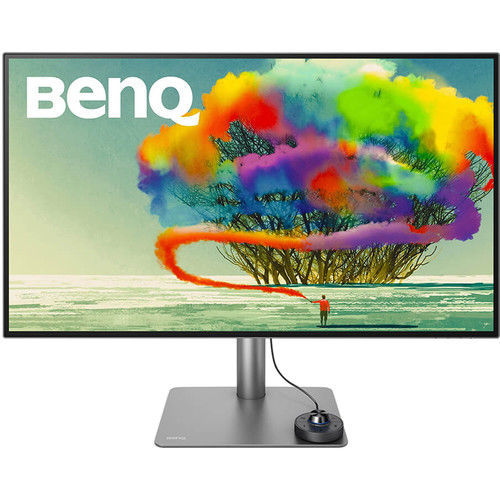

The PD3220U DesignVue Designer 31.5" 16:9 HDR 4K IPS Monitor from BenQ has been built to satisfy designers' needs for color performance, with support for 100% of the sRGB and Rec. 709 color gamuts, 95% of the DCI-P3 color gamut, and HDR10. Driven by BenQ's AQCOLOR technology and an Ultra HD 4K resolution of 3840 x 2160 with a 60 Hz refresh rate, the PD3220U helps deliver improved accuracy and productivity tailored for specific tastes. It does this using three special modes - CAD/CAM, Animation, and Darkroom - each of which is tailored for different scenarios, allowing users in different fields to achieve similar results.
The PD3220U features In-Plane Switching (IPS) technology, an anti-glare panel coating, 10-bit support for 1.07 billion colors, a widescreen 16:9 aspect ratio, a static contrast ratio of 1000:1, a dynamic contrast ratio of 20M:1, a 300 cd/m2 brightness rating, 140 ppi, and a 5 ms (GtG) response time. Using the 178° horizontal and vertical viewing angles, it is possible to watch content from virtually any position. There are also two HDMI 2.0 inputs, one DisplayPort 1.4 input, and two Thunderbolt 3 ports that each support DP alt mode for daisy-chaining multiple displays and data transfers. One Thunderbolt 3 port supports devices charging up to 85W, while the other supports it up to 15W. Additional connectivity is achieved using one USB 3.1 Gen 2 Type-C port (data transfers only), three USB 3.1 Gen 2 Type-A ports (downstream), and one USB 3.1 Gen 2 Type-B port (upstream). Audio can be output using the dual integrated 2W speakers or the 3.5mm headphone jack.
BenQ's PD3220U also supports HDCP 2.2, Flicker-Free technology, Low Blue Light technology, Picture in Picture (PiP), Picture by Picture (PbP), and more. To further help improve viewing and accessibility, it features a vertical tilt of -5 to 20°, a left/right swivel of ±30°, a clockwise/counterclockwise pivot of 90°, and a height adjustment of 5.91". It is certified for Mac, Windows 10, 8.1, 8, and 7, SolidWorks, and Calman.
Please note that the USB ports will only operate with data transmission speeds of 10 Gb/s USB 3.1 Gen 2 when using the Thunderbolt 3 video input. If DisplayPort or HDMI is used, the data transmission speeds will operate at 5 Gb/s USB 3.1 Gen 1.
