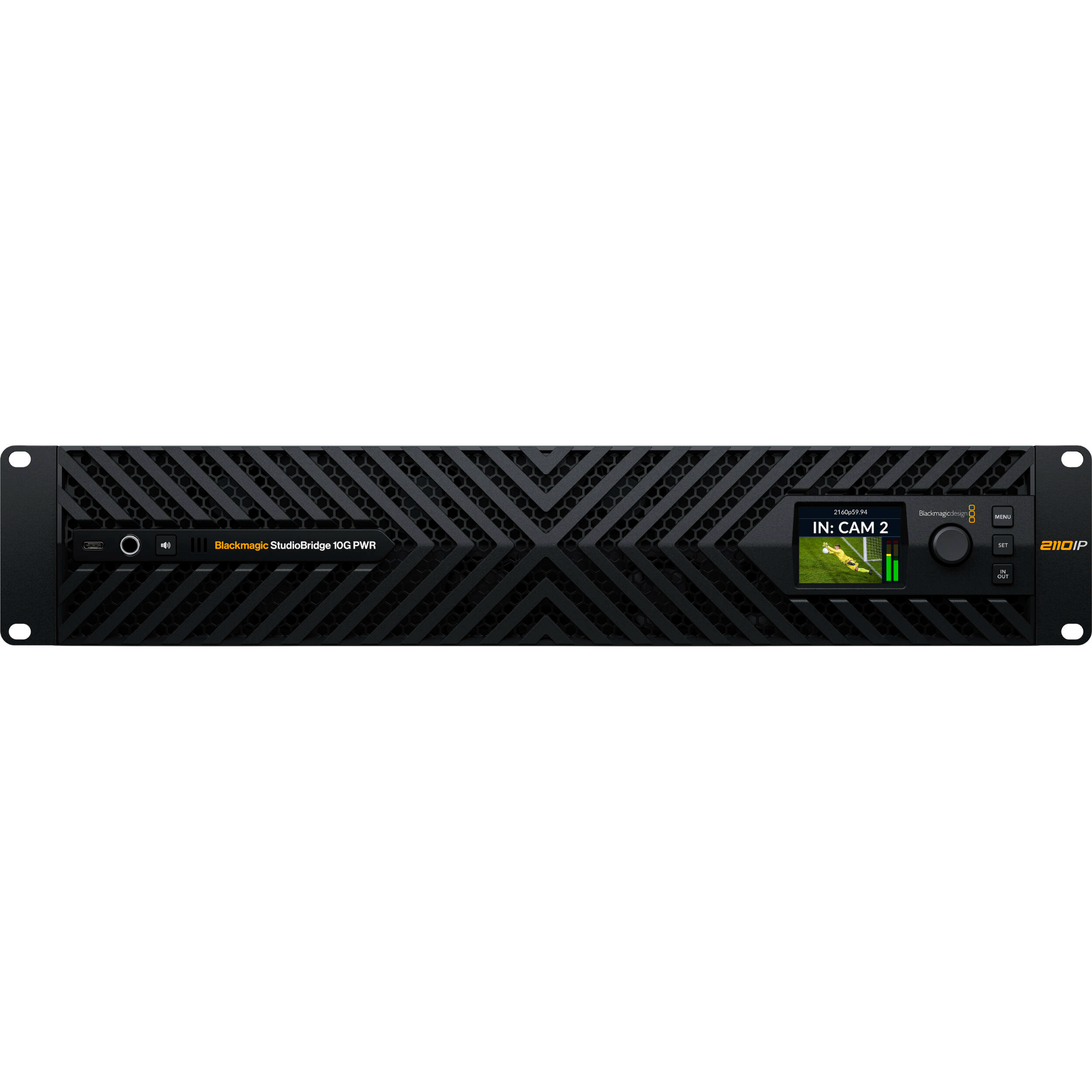

The Blackmagic Design StudioBridge 10G PWR is a 2 RU IP video bridge designed to integrate multiple 10G Ethernet streams into high-bandwidth, redundant 100G broadcast infrastructures. Supporting up to eight channels of SMPTE 2110 video at resolutions up to 4K60, the unit converts 10GbE IP video streams into dual 100GbE QSFP28 outputs with SMPTE 2022-7 redundancy for uninterrupted signal delivery. Each input supports automatic format detection across HD and Ultra HD standards, along with 16 channels of embedded audio per stream, ensuring compatibility with modern IP-based production workflows.
Engineered for deployment in live production and broadcast environments, each of the eight 10GbE RJ45 inputs provides up to 90W of PoE++ power, enabling direct connection and powering of cameras, converters, and other downstream devices over a single cable. A front-panel 2.2" LCD with integrated control knob and buttons allows real-time monitoring of video, audio, and system status, and a built-in speaker and headphone output provide immediate audio confidence monitoring. External control is supported via a dedicated RJ45 for NMOS-based configuration and USB-C for setup and firmware updates, with dual IEC power inputs ensuring power redundancy for reliable performance.
- Converts eight 10GbE SMPTE 2110 IP video streams into dual 100GbE outputs
- Two 100GbE QSFP28 outputs support full SMPTE 2022-7 redundancy
- Eight 10GbE RJ45 inputs with up to 90W PoE++ per port
- Supports SMPTE 2110-20, 2110-21, 2110-30, and 2110-40 standards
- Auto-detection of HD and Ultra HD formats up to 4K60
- 10-bit 4:2:2 video with Rec. 709 and Rec. 2020 color space support
- 16 channels of embedded audio per IP video stream
- 2.2" front-panel LCD for video, audio, timecode, and system monitoring
- Integrated control knob and buttons for source selection and configuration
- Built-in speaker and headphone output for audio monitoring
- Dedicated RJ45 port for NMOS control, configuration, and updates
- USB-C interface for firmware updates and local configuration
- Dual IEC C14 AC inputs for redundant power delivery
