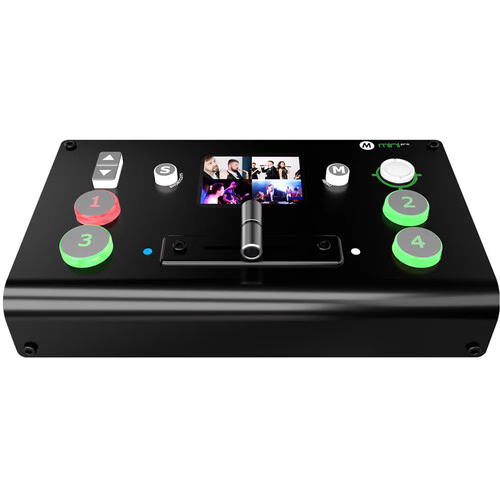

Live-switch, control, and stream up to four HDMI video sources such as PTZ cameras with transitions and effects using the mini-pro Video Switcher from RGBlink. The compact mini-pro video switcher can input up to 4K60 video via four HDMI 2.0 inputs, output program and preview video via one HDMI port, record external video via one USB 2.0 output, and stream up to 1080p60 H.265 video via USB 3.0 with third-party streaming software. The switcher allows you to control PTZ cameras and supports the use of chroma keying and the addition of graphics logos to your video feed.
The mini-pro allows you to switch between the inputs by touching the button sources, auto-switching, via software, or using the T-bar with preset FX transitions. You can utilize the HDMI embedded audio, or you can embed audio from a microphone or external source using the 3.5mm stereo input jack. There is also a 3.5mm output jack to de-embed the audio for use with external speakers or an audio mixer.
You can monitor all four inputs using the built-in color TFT display on the unit, or you can output program/preview via the HDMI output. The mini-pro supports video output up to 1080p60 via two USB outputs for use with a variety of third-party streaming software or NLE video editing systems, allocating one for streaming and one for externally recording your program. The RJ45 port allows you to connect to a LAN for software control of the mini-pro. The unit is powered using its USB Type-C input.
