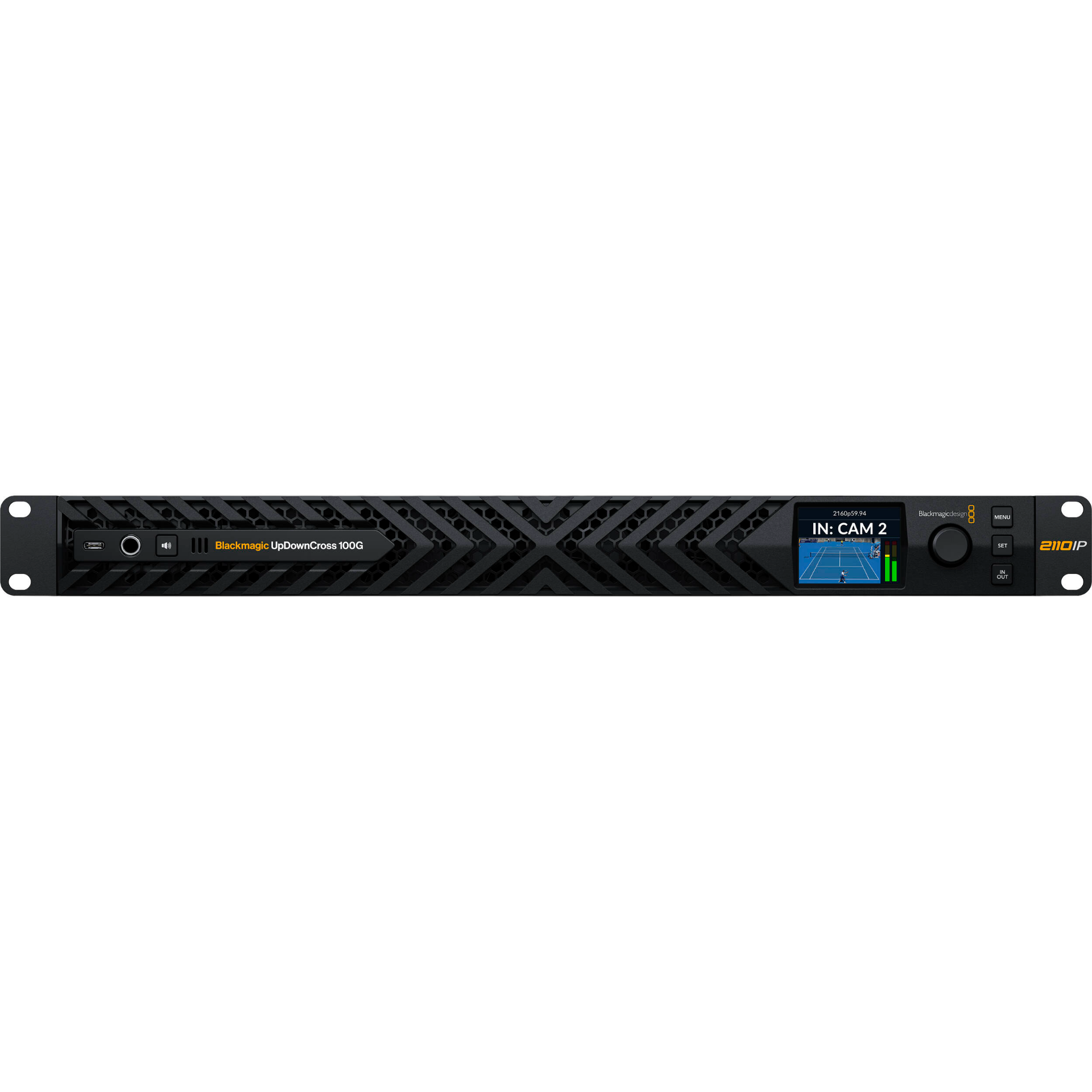

The Blackmagic Design UpDownCross 100G is a 1 RU IP video standard converter designed for 100G broadcast infrastructures. Supporting up to eight channels of SMPTE 2110 video at SD, HD, and Ultra HD resolutions, the unit simultaneously converts IP video streams into any other video standard via dual 100GbE QSFP28 interfaces with SMPTE 2022-7 redundancy for uninterrupted signal delivery. Each IP stream also supports up to 16 channels of embedded audio.
Engineered for deployment in live production and broadcast environments, the UpDownCross 100G sports a front-panel 2.2" LCD with an integrated control knob and buttons, allowing real-time monitoring of video, audio, and system status. A built-in speaker and headphone output provide immediate audio confidence monitoring. External control is supported via a dedicated RJ45 for NMOS-based configuration and USB-C for setup and firmware updates, with dual IEC power inputs ensuring power redundancy for reliable performance.
Converts eight channels of IP video from SD, HD, or Ultra HD to any other standard
Two 100GbE QSFP28 interfaces with full SMPTE 2022-7 redundancy support
Supports SMPTE 2110-20, 2110-21, 2110-30, and 2110-40 IP video
10-bit 4:2:2 video with Rec. 709 and Rec. 2020 color space support
- 16 channels of embedded audio per IP video stream
2.2" front-panel LCD for video, audio, timecode, and system monitoring
Integrated control knob and buttons for source selection and configuration
Built-in speaker and headphone output for audio monitoring
Dedicated RJ45 port for NMOS control, configuration, and updates
USB-C interface for firmware updates and local configuration
- Dual IEC C14 AC inputs for redundant power delivery
